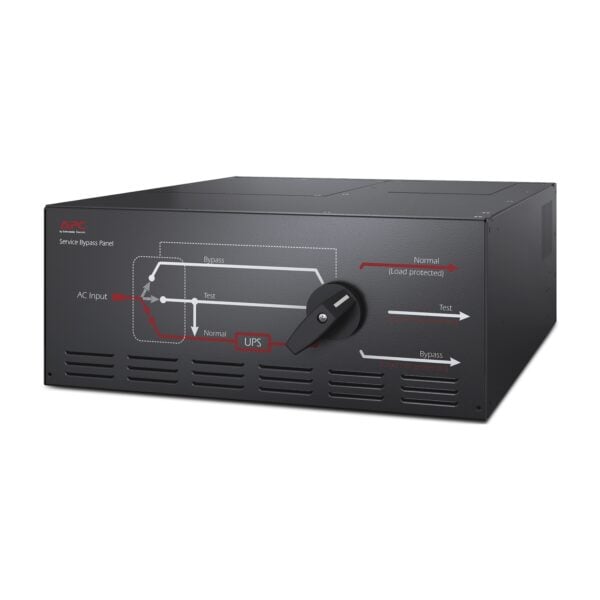

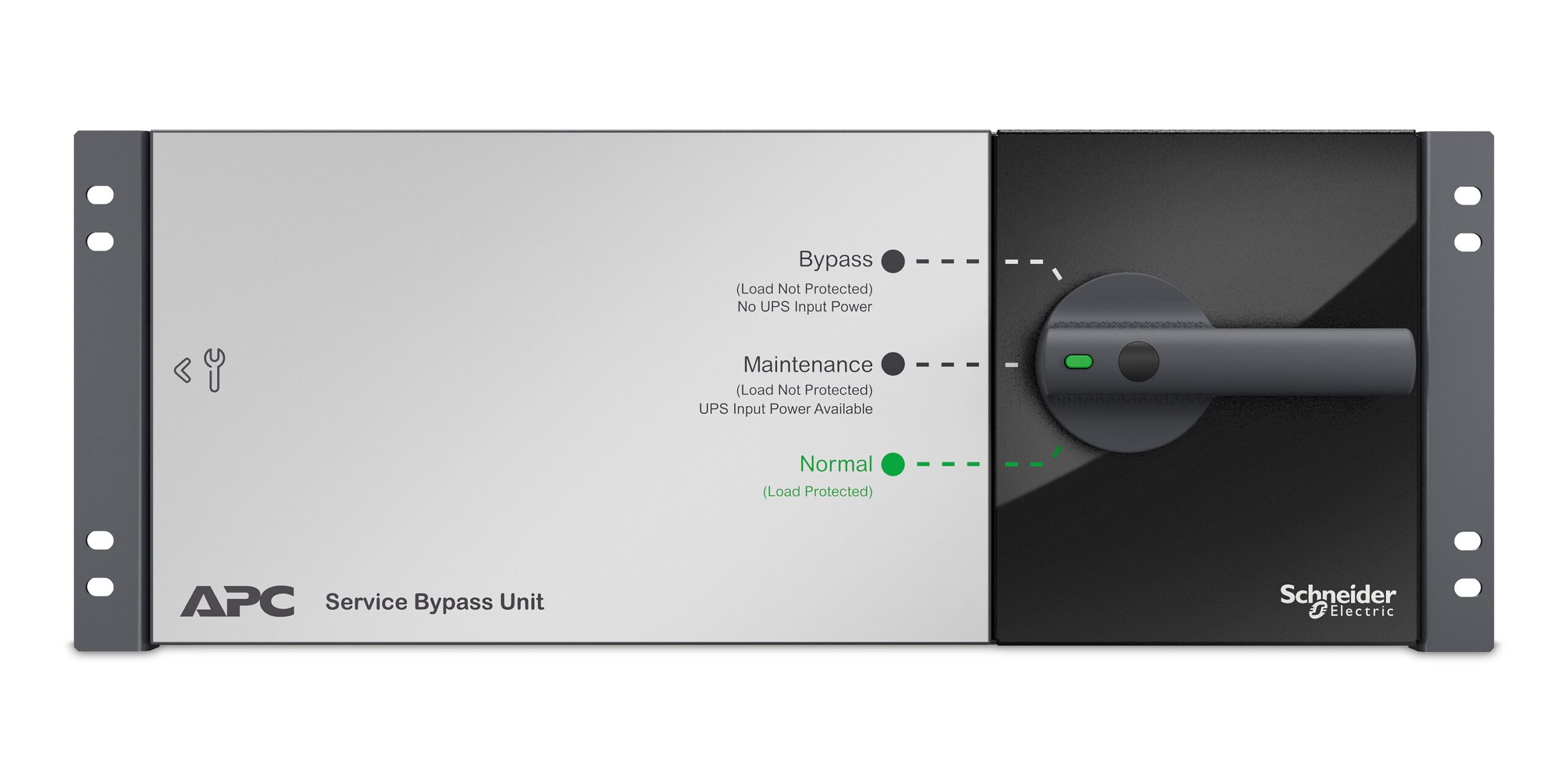

APC UPS Bypass Switch, 20kVA, Hardwired (SB20KP)
- Power Rating: Supports a load capacity of up to 20 kVA, suitable for high-demand applications.
- Input/Output Voltage: Designed for operation at 200V, 208V, 230V, and 240V, providing versatility across different electrical environments.
- Current Rating: Rated for a maximum input/output current of 125A, ensuring robust power handling capabilities.
- Rack-Mountable Design: Occupies 4U of rack space, facilitating easy integration into existing server racks.
- Quick Transfer Rate: Features a quick transfer mechanism that allows for seamless switching between utility power and UPS power, minimizing downtime during maintenance.
- Wrap Around System Bypass: This design allows for continuous power to connected loads during maintenance operations.
- Included Accessories: Comes with installation guides, rack mounting brackets, and user manuals for easy setup and operation.
- Weight: Weighs approximately 21.4 kg (47.09 lbs), making it manageable for installation.
Description
The APC UPS Bypass Switch (SBP16KRMI4U) is designed for mission-critical environments, allowing uninterrupted power supply during UPS maintenance or replacement. With a robust 16kVA capacity and hardwired connectivity, this 4U rackmount switch is the ideal solution for high-demand IT and industrial applications.
