Single Phase Rackmount

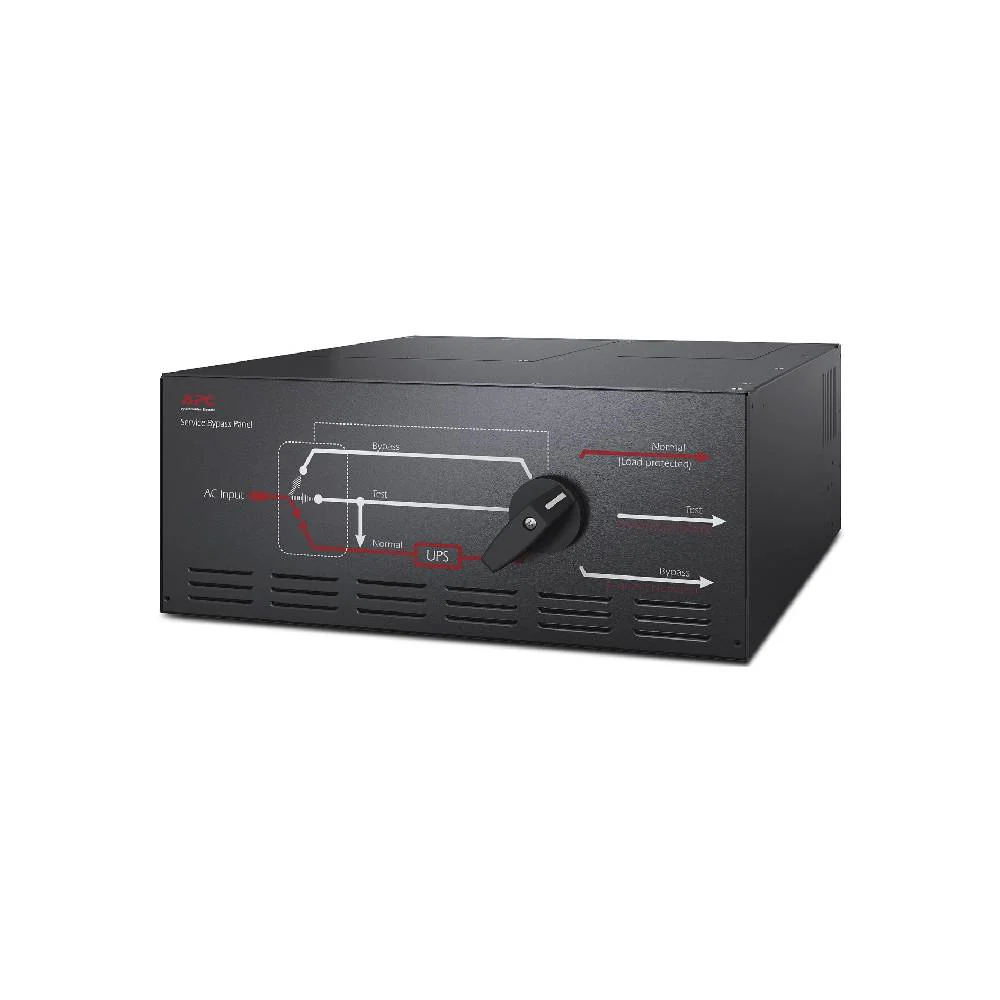

APC UPS Bypass Switch, 20kVA, Rackmount, Hardwired Input / IEC Output (SBP20KRMI4U)

  • Power Rating: Supports a load capacity of up to 20 kVA, making it suitable for high-demand applications.
  • Input/Output Configuration:
    • Hardwired Input: Designed with secure hardwired connections.

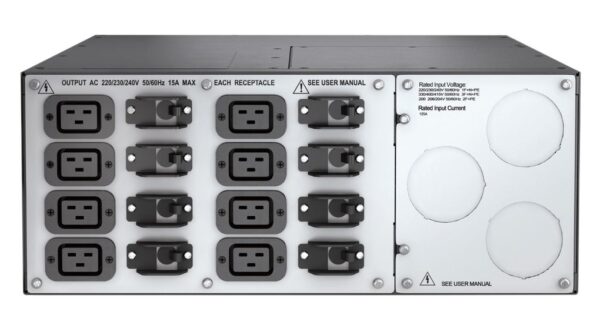

    • IEC Output: Features 8 IEC 60320 C19 output connections, providing versatile connectivity for various equipment.
  • Input Voltage: Operates at nominal voltages of 220V, 230V, and 240V, accommodating different electrical environments.
  • Current Rating: Rated for a maximum input/output current of 125A, ensuring robust power handling capabilities.
  • Rackmount Design: Occupies 4U of rack space, facilitating easy integration into existing server racks.
  • Physical Dimensions: Dimensions are approximately 178 mm (H) x 432 mm (W) x 572 mm (D), with a net weight of about 18.78 kg, making it manageable for installation.
  • User-Friendly Operation: Simplifies the process of switching between utility power and UPS power, enabling safe maintenance without interrupting power to connected devices.
  • Environmental Ratings: Designed to operate effectively in ambient temperatures ranging from -20°C to 50°C and relative humidity levels of 0% to 95%.
Categories: ,

Description

The APC UPS Bypass Switch (SBP20KRMI4U) is designed to ensure uninterrupted power during UPS maintenance or replacement. With a robust 20kVA capacity, a 4U rackmount design, hardwired input, and IEC output, this switch offers reliable and flexible power management for mission-critical IT and industrial environments.
