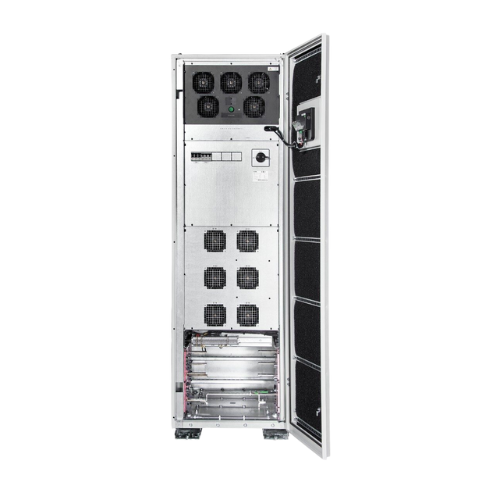

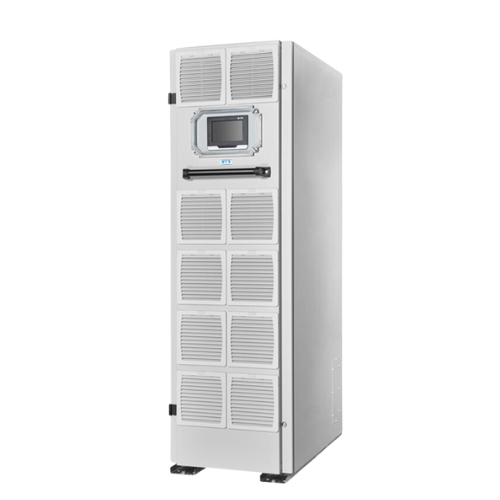

Eaton 9PHD Industrial UPS
Eaton 9PHD Industrial UPS - Image 2
Eaton

Eaton 9PHD Industrial UPS

  • Power Capacity: Available in a range from 30 to 200 kW.
  • Efficiency: Operates at up to 97% efficiency in double conversion mode and over 99% in Energy Saver System (ESS) mode.
  • Input: The system has a configurable nominal voltage rating of 380V to 480V, with an optional transformer allowing for 208V to 690V. The input frequency range is 40-72 Hz. It also has a 0.99 input power factor.
  • Output: The output voltage is configurable from 380V to 480V, with an optional transformer for 208V to 690V. The rated output power factor is 1.0
  • Scalability: It uses Eaton’s Hot Sync technology for parallel operation of up to 8 units without communication links, enhancing reliability.
  • Battery Management: Features Advanced Battery Management (ABM) technology to extend the life of valve-regulated lead-acid (VRLA) batteries, with options for Lithium-ion, NiCd, and Super Capacitors. It also has a battery start capability.
  • Protection: The UPS offers protection against dirt, dust, water, and moisture, with cover options from IP23 to IP54 1. It also has internal backfeed protection.
  • Robust Design: Built with a strong cabinet suitable for vibration and seismic environments, and conformally coated PCB boards.
  • Installation: Designed for easy deployment with front access for installation and service, and lifting lugs for easier handling.
  • Monitoring: Includes a touch screen display, with options for Web/SNMP, ModBus/Jbus, and industrial relay communications.
  • Overload Capacity: The UPS has overload capabilities, with varying durations depending on the load percentage.
Categories: , ,

Description

The Eaton 9PHD Industrial UPS is a robust and efficient power protection solution designed for a range of industrial applications, including marine and offshore environments. It utilizes a transformer-free IGBT with PWM, double-conversion topology.
